Product
Provide High Quality Coding Supplies to the World
Two days production, Seven days shipping! The fastest in China!

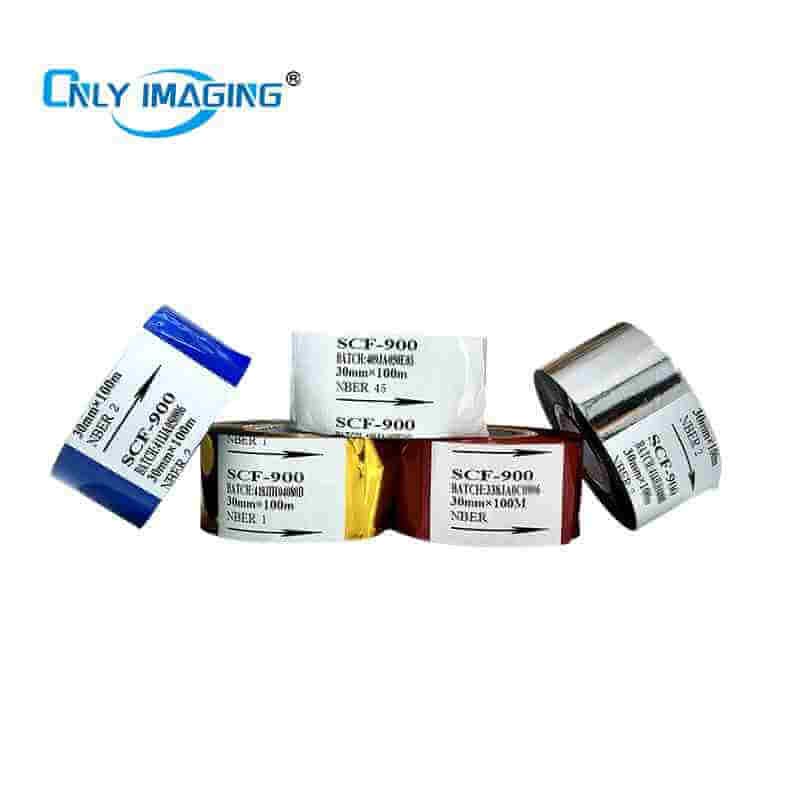

SCF900 Hot stamping Foil
Specification:
33mm*500m, 55mm*500m, 110mm*500m, Oem Size and Large Roll Sold
Material:
Polyester Film, Carbon Black
MOQ:
100 Pieces
Color:
Black, Green, Red, Blue, White, Yellow
Origin:
China
Application:
It Is Suitable for Packaging Coding of Pet, Milk Bags, Aluminum Foil, Uv Labels and Various Composite Films in Food, Pharmaceutical and Other Industries.
Product Details
Technical Parameters
| Model | SCF900 (Black) | SCF910 (Black) | Other Color
(White/Red/ Yellow/Blue/Gold/Silver) |
| Working Temperature ( ℃ ) | 110-150 | 110-180 | 110-150 |
| Printing Material | PP,PE,PET,PVC,PS and other Kinds of Synthetic Films; Aluminum Foil; Paper Labels;
All of flexible packages |
||
| Specification | 20mm x100/122/150/200m; 25mm x100/122/150/200m; 30mm x100/122/150/200m;
35mm x100/122/150/200m (All of size are available as customized) |
||
| Remark | 1.Jumbo Roll: 530*6000, 660*4000, 760*4000, 830*4000, 950mm*4000M (Other size is also available as customized)
2.Small Finished Roll: Product OEM Labels and any other size could be customized according to customers’ special requirement. |
||
Ribbon Material: Base Material: Polyester Film
Basement Film Thickness: 12μm
Total Thickness: 22-24μm
Ink Color: Black
Printing Characteristics: On the Premise of Choosing a Suitable Coding Machine, The Coding Parameters Can Be Adjusted Within the Following Ranges, And the Most Suitable Conditions for the Corresponding Coding Machine and Transfer Material Can Be Selected:
Temperature Range: 100°c-160°c (Recommended 110°c-150°c)
The Actual Temperature of the Prefix Measured by the Thermometer Shall Prevail
Pressure Range: 0.3~0.5mpa (Recommended 0.4mpa)
Coding Speed: 30-600 Times/Min (Best Transfer Speed 50-200 Times/Min)
Printing Effect: The Printed Characters Are Round and Full, And the Effect of Abrasion Resistance Is Good.
Applicable Materials: Suitable for Pet, Pp, Pe and Other Films, Milk Bags, Aluminum Foil, Uv
Labels and Various Composite Films and Other Materials.
